OVERVIEW

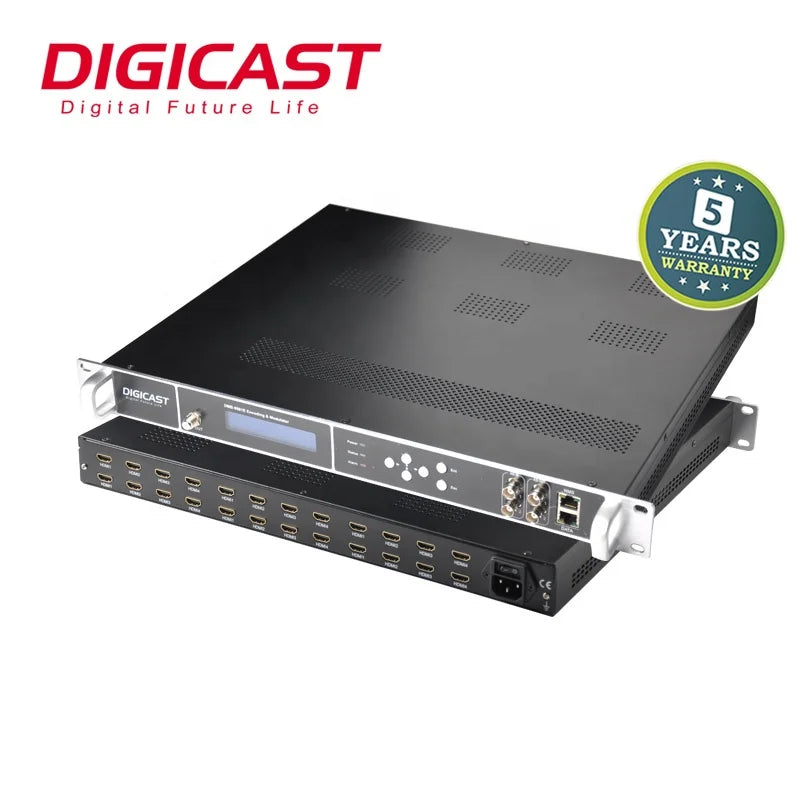

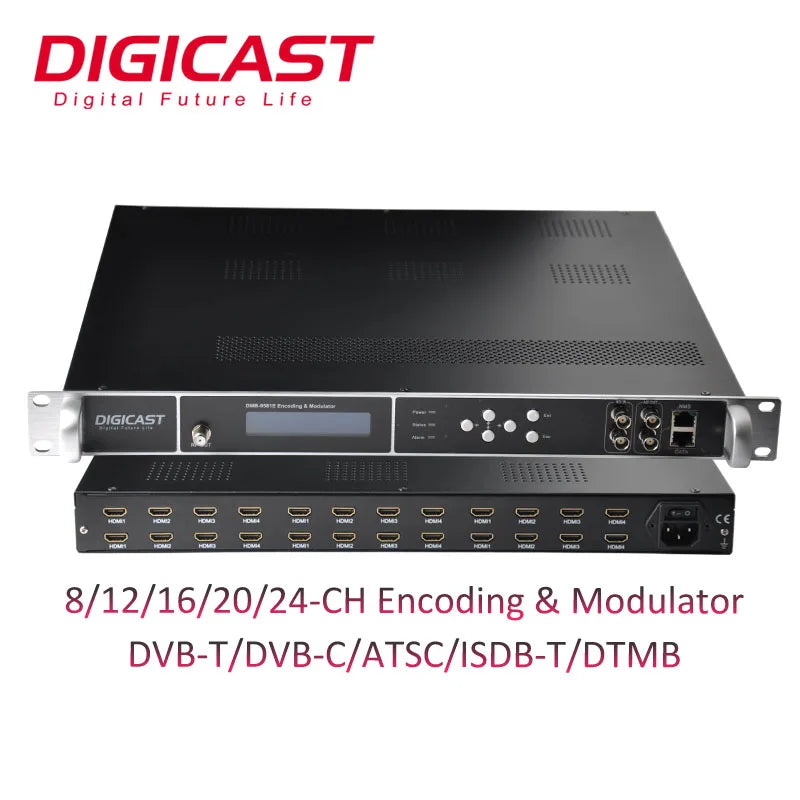

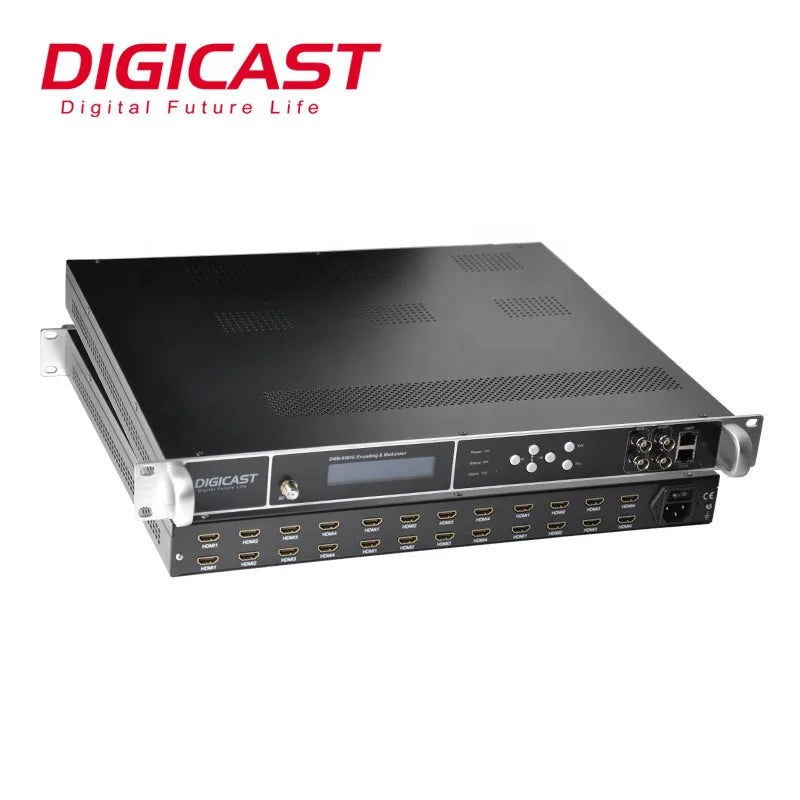

DMB-9581E series multi-channel H.264 HD Encoding & Modulator (all-in-one) is a high-density and flexible device, integrating encoding 8/12/16/20 up to 24*HDMI in, multiplexing, encapsulation and modulation with its excellent performance of HD encoding and modulation. Not only HDMI input, It supports tuners and HDMI input at the same time, demodulation the Tuners signal and encoding the HDMI signal, output RF with DVB-T/DVB-C/ATSC/ISDB-T/ DTMB for option.
Meanwhile, it delivery unrivaled and reliable video quality with advanced video compression technology, to meet the ever-increasing need of high quality video experiences. Moreover, with its multiplexing module, local programs can be re-multiplexed with external transport stream. DMB-9581E series can be applied to IPTV system with TS over IP output/input. The device also supports program sources from HD STB, HD camera or playout server, PC and other diversified video source.
Meanwhile, it delivery unrivaled and reliable video quality with advanced video compression technology, to meet the ever-increasing need of high quality video experiences. Moreover, with its multiplexing module, local programs can be re-multiplexed with external transport stream. DMB-9581E series can be applied to IPTV system with TS over IP output/input. The device also supports program sources from HD STB, HD camera or playout server, PC and other diversified video source.
FEATURES

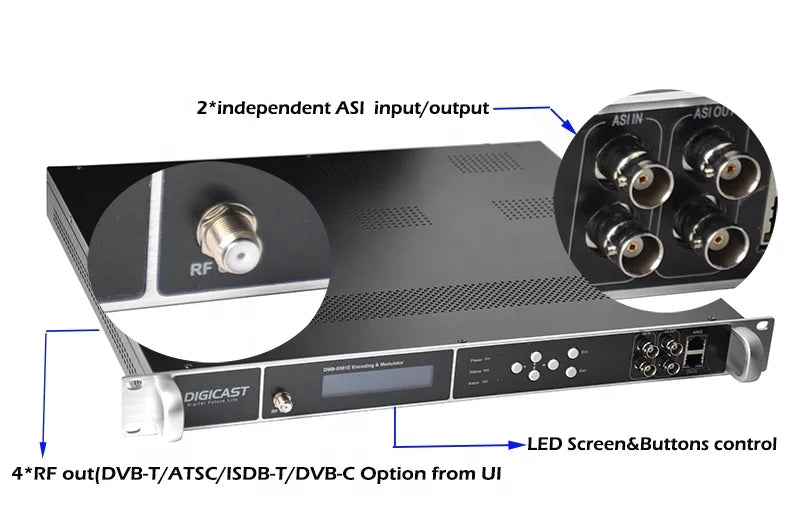

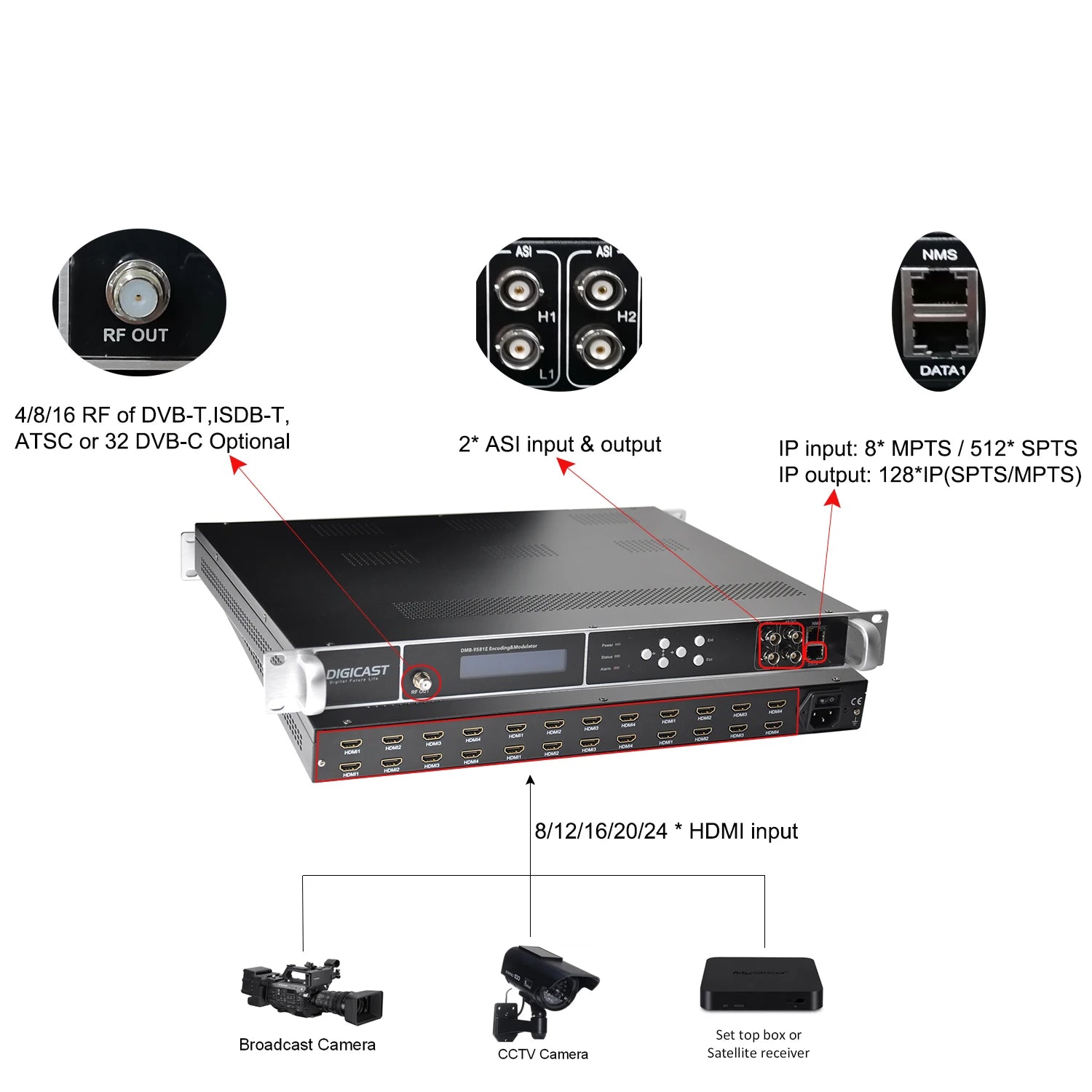

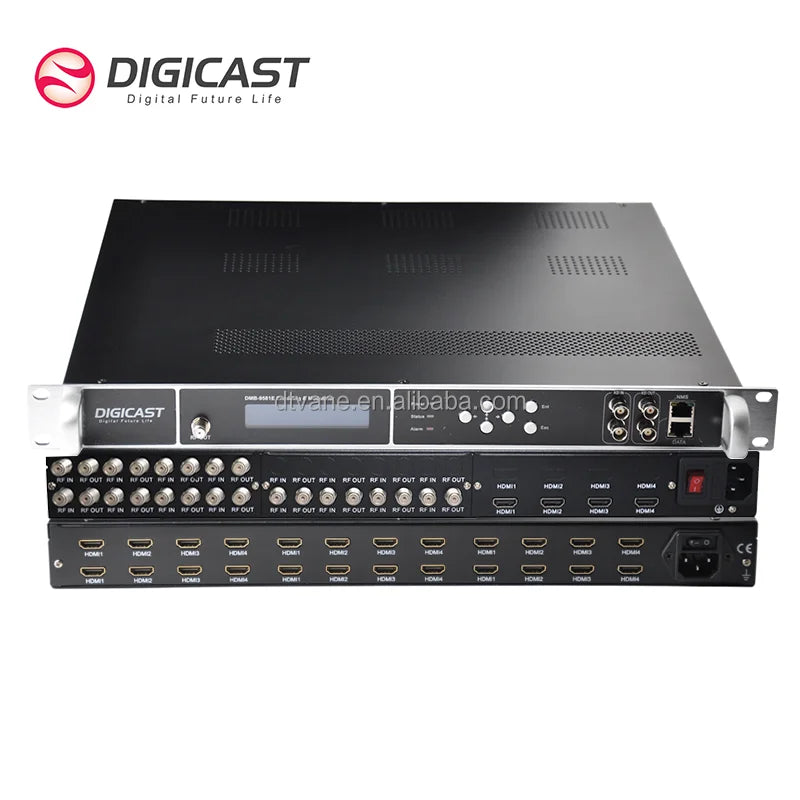

* Input: Version1: 8 / 12 / 16 / 20 / 24 *HDMI input+2 * independent ASI I/O+IP I/O, capable of multiplexing.
Version 2: support HDMI+Tuner mixed input for option: 16 HDMI+8*Tuner, 8 HDMI+16 Tuners,
Version 2: support HDMI+Tuner mixed input for option: 16 HDMI+8*Tuner, 8 HDMI+16 Tuners,
The HDMI and Tuners input must be 4 times and max total 24 channels input
* Output: up to 127*SPTS over IP(UDP/RTP)/1 or 8*MPTS, 2*ASI(independent), RF out with 4/8*RF DVB-T/ATSC-T/ISDB-T/Tb/DTMB or 16*DVB-C for option.
* With superior shoulders and modulation quality MER≥40dB
* Support lower power consumption and high reliability with MTBF (Mean Time Between Failure) ≥50000 Hours
* Equipped with multiplexing module, able to multiplex local programs with external TS, IP
* Output: up to 127*SPTS over IP(UDP/RTP)/1 or 8*MPTS, 2*ASI(independent), RF out with 4/8*RF DVB-T/ATSC-T/ISDB-T/Tb/DTMB or 16*DVB-C for option.
* With superior shoulders and modulation quality MER≥40dB
* Support lower power consumption and high reliability with MTBF (Mean Time Between Failure) ≥50000 Hours
* Equipped with multiplexing module, able to multiplex local programs with external TS, IP
* Cut-off memory capability
* Management of support web browser via Ethernet interface
* Support software upgrading by Ethernet interface
* Management of support web browser via Ethernet interface
* Support software upgrading by Ethernet interface
|
Specification
|
||||||
|
H.264 HD Encoding Module
|
Video input: 8/12/16/20/24 HDMI
Video compression standard: MPEG-2, H.264 HD video encoding Resolution input : 1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i,1280×720@60P, 1280×720@50P 720×576@50i,720×480@60i
output: 1920×1080@30P, 1920×1080@25P, 1280×720@30P, 1280×720@25P,
720×576@25P, 720×480@30P (without 60 fps output) Audio input: HD MI Audio compression standard: MPEG1 Layer II(default), (LC-AAC, HE-AAC optional) Audio sampling rate: 48KHz Audio bit-rate: 64 ~ 320kbps |
|||||
|
ASI Input
|
Channel: 2*ASI(Independent)
Interface: BNC, 75 ohm
Signal level 200-800mVp-p
Packet length: 188 bytes Maximum bit-rate: per port ≤100Mbps Packet mode: Byte mode |
|||||
|
ASI output
|
Channel: 2*ASI(Independent)
Standard: compliant with EN 50083-9 ASI Output loss: >10dB Interface: BNC, 75 ohm |
|||||
|
IP Output
|
RJ45 Port, 100/1000M GigE Port
Simultaneous output with N*SPTS (N==HDMI channels) and 1*MPTS (modulation or MPTS channels) MPEG-2 TS over RTP, UDP unicast and multicast streaming Configurable packet size(2-7)x188Bytes Filter Null Packet Total Bitrate: 1-200Mbps (Should be More than Encoding bitrate) |
|||||
|
Output MODULATION MODULES (optional)
|
||||||
|
DVB-T Modulation
|
Channel: DVB-T adjacent frequencies
Modulation standard: EN300744 Frequency range: 96~864MHz,1Khz one step Modulation standard: EN300744 Bandwidth: 6M, 7M, 8M FFT mode: 2K, 8K
Constellation:QPSK,16QAM,64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32 FEC 1/2, 2/3, 3/4, 5/6, 7/8 TS bit rate < 31 Mbit/s |
|||||
|
DVB-C Modulation
|
Channel: 4*DVB-C adjacent frequencies
Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan) Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30 ~ 960MHz, in 1KHz steps Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed Out-of-band rejection: 55dB Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M |
|||||
|
ATSC-T Modulation
|
Channel: 8VSB*4 adjacent frequencies
Modulation standard: ATSC A/53 Constellation: 8VSB RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30~960MHz, in 1KHz steps |
|||||
|
DTMB Modulation
|
Channel: 4*DTMB frequency
Modulation standard: GB20600-2006 Bandwidth: 8MHz Constellation: 4QAM, 4QAM-NR,16QAM, 32QAM, 64QAM Qty. of modulation carriers: 1(single carrier) or 3780(multi-carriers) Guard intervals: PN420, PN595, PN945 Internal error correction code: LDPC Encoding efficiency: 0.4, 0.6, 0.8 Interlace depth: 240, 720 MER: ≥42dB ACLR: 55dB Frequency range: 110 ~ 960MHz, in 1KHz steps RF out level: -26dBm ~ -10dBm, in 0.5dB steps |
|||||
|
ISDB-T Modulation
|
Channel: 4*ISDB-T frequency
Modulation standard: ARIB STD-B31 Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k) Constellation: DQPSK, QPSK, 16QAM, 64QAM Internal code: FEC (1/2, 2/3, 3/4, 5/6, 7/8) External code: RS (204, 188) Guard interval: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6MHz RF output frequency range: 30 ~ 960MHz, in 1KHz steps MER: ≥42dB RF output level: -26dBm ~ -10dBm, in 0.1dB steps |
|||||
Application & Diagram
Insert More programs to existing coaxial system
DIGICAST as leader manufacturer of Digital TV headend equipment, provide different products to meet various project application
Widely used in Hotel,Hospital and DVB-T,DVB-C,ATSC,ISDB-T digital TV Broadcasting system
Widely used in Hotel,Hospital and DVB-T,DVB-C,ATSC,ISDB-T digital TV Broadcasting system
DMB-24E FTA Tuner to RF Remodulator
Input: FTA 24 tuners+2*ASI input +128*MPTS/SPTS UDP/IP input
Output: 4/8 RF output (DVB-C /ATSC /DVB-T/ISDB-T)+1*MPTS & 127* SPTS UDP/RTP IP Output+2*ASI
DMB-24E IP 16 or 32 RF Modulator
Input: 3 IP 1000M port,each port 128*MPTS/SPTS UDP/IP input+6*ASI Output : 16 or 8* DVB-T/ATSC/ISDB-T 32 or 16 DVB-C QAM out + 8*MPTS/SPTS out
DMB-9580 MPEG2 SD RF Modulator
Input: 24*CVBS input +128*MPTS/SPTS+2*ASI input Output: 4 or 8 RF output +1*MPTS/127*SPTS out+2*ASI
CATV FTTH RF to fiber System
DIGICAST Modulator series widely used as the headend equipment for FTTH system
Fiber Transmitter
Fiber store’s Optical transmitters are special optical transmitting equipment in HFC broadband transmitting network. The product which use direct optical intension, low RF-signal input level, excellent air proof and fast-heating capability, make it possiblework at any kind of bad environment. It can transmit analog TV signal, digital TV signal by optical fiber
EDFA
DIGICAST EDFA series with 8,16,32,64 ports option,20,21,22,23dbm,+WDM optionAs optical amplifier, EDFA is the most widely deployedone in the WDM system.
ONU (Optical Network Unit)
DIGICAST ONU series widely used in GPON EPON System
WIFI,CATV,IP, Voice different configuration to meet various customer project requirements
WIFI,CATV,IP, Voice different configuration to meet various customer project requirements
