IPTV H.264 HD MI to IP Encoder digital TV headend IPTV system 24 channels HD IP encoder with 256 SPTS 4 MPTS UDP out
Product Description

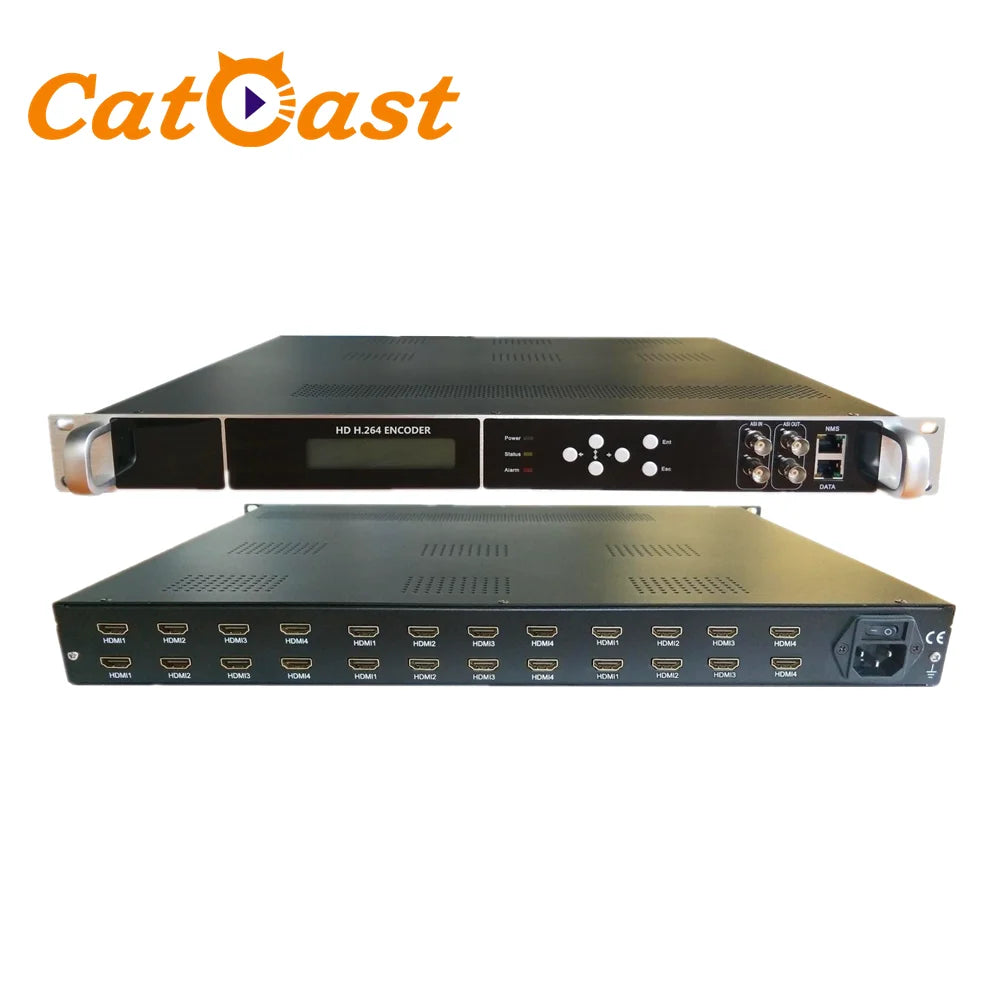

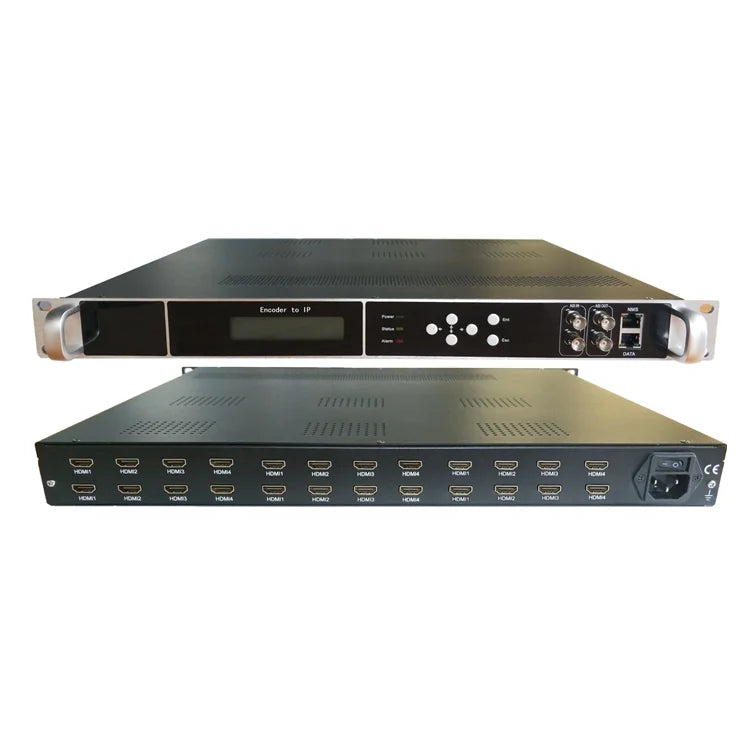

HP824LX Encoder is a professional high integration device which includes encoding, multiplexing. It supports 4/8/12/16/20/24 HD MI input, 2 ASI input, 1000M multicast IP stream output. It also supports ASI output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as IPTV multicast, cable TV digital head-end, digital TV broadcasting etc.
Key Features
Support QR code, LOGO, OSD insertion for every local channel 4/8/12/16/20/24 HD MI input, support HDCP Support MPEG-4AVC/H.264 Video encoding Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2Audio encoding 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol, support multicast and unicast 2ASI inputs 2ASI Independent output (optional) as copy of 4MPTS Support “Null PKT Filter” function Support PID Remapping/ PCR accurate adjusting LCD、key function Control via web management, and easy updates via web

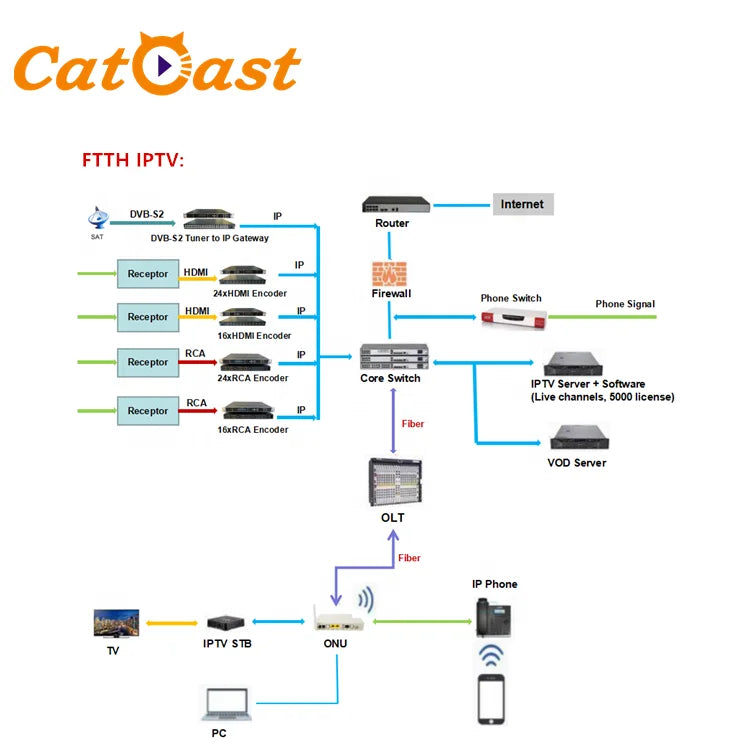

FTTH IPTV SYSTEM:

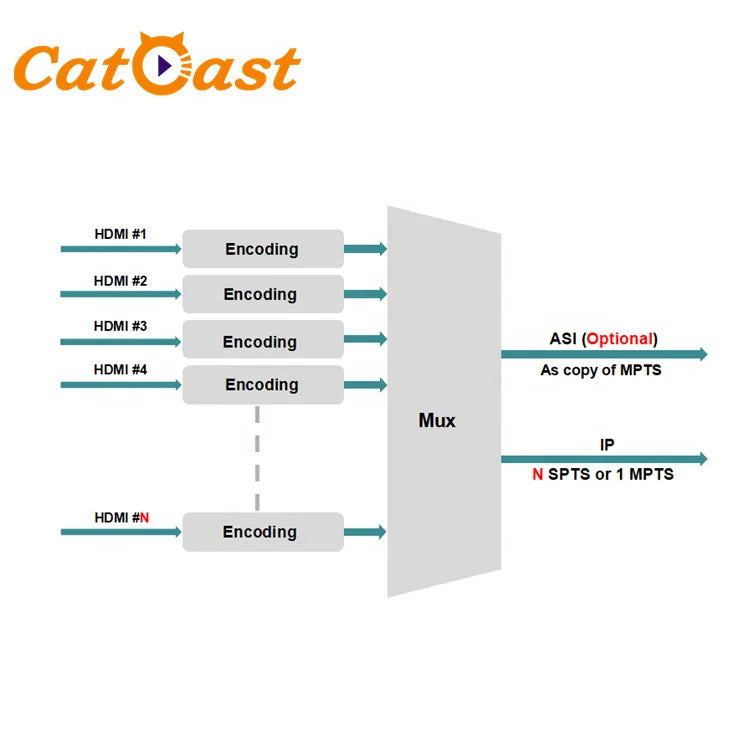

Principle Chart
Specification
|
input
|
HD MI(8/12/16/20/24xHD MI)
|
||
|
2 ASI inputs
|
|||
|
output
|
2 ASI output
|
||
|
IP output:8/12/16/20/24× HD MI inputs with 8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol
|
|||
|
video
|
Encoding
|
MPEG-4 AVC/H.264
|
|
|
Resolution
|
Input:1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
||
|
Output:1920×1080_60P, 1920×1080_50P,
1280×720_60P, 1280×720_50P, 720×576_50P, 720×480_60P 1920×1080_30P,1920×1080_25P, 1280×720_30P,1280×720_25P, 720x576_25P,720x480_30P |
|||
|
Bit-rate
|
1Mbps~13Mbps（each channel)
|
||
|
Rate Control
|
CBR
|
||
|
Audio
|
Encoding
|
MPEG1 Layer2
|
|
|
Sampling rate
|
44.1KHz and 48Khz
|
||
|
Bit-rate
|
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
|
||
|
Resolution
|
24-bit
|
||
|
Audio Gain
|
0-255 Adjustable
|
||
|
Multiplexing
|
Maximum PID Remapping
|
180 output pids per channel
|
|
|
Function
|
PID remapping ( automatically or manually)
|
||
|
Accurate PCR adjusting
|
|||
|
System function
|
Network management(WEB)
|
||
|
Chinese and English language
|
|||
|
Ethernet software upgrade
|
|||
|
Miscellaneous
|
Dimension(W×L×H)
|
482mm×480mm×45mm
|
|
|
Environment
|
0~45℃(work)；-20~80℃(storage)
|
||
|
Power requirements
|
AC100~240V，50/60Hz
|
||
