Outdoor Mapping Projection 10000 Lumens WUXGA 1920x1200P 3LCD Large Venue EL-705U
Outdoor Mapping Projection 10000 Lumens WUXGA 1920x1200P 3LCD Large Venue EL-705U
Regular price
$9,568.44 USD
Regular price
$0.00 USD
Sale price
$9,568.44 USD
Unit price
per
Couldn't load pickup availability
Product Description
3 LCD Large Venue Projector
Large Venue projectors can meet the high-brightness display environment of large halls, lecture halls, conference rooms, and
exhibition halls; 8000-10000 ANSI lumens and high brightness. Besides, 1.8x standard electric zoom lens, multi-angle displacement, free from constraints, and
make space more free.
Large Projection Area , high image quality
The engineering series also uses 3LCD high-end display chips, 8000-10000 ANSI lumens and high brightness, 10000:1 high contrast, high resolution, covering full HD, The details are more obvious, and the strong sense of immersion can experience a comfortable visual atmosphere even in a wide space.
Lens Interchangeable
The lens supports 1.8 x Motorized zoom, supports a variety of options, and can be replaced with one button, the "mirror" shows its ability, we only do more professional.
WUXGA Native resolution
WUXGA resolution (1920 × 1200 pixels) can present full HD video (1920 × 1200 pixels) images. Even when projecting on a large screen, it can still maintain clear and vivid details, giving users a vibrant visual experience.
10000:1 high contrast, Full picture layering
With a high contrast ratio of 10000:1, the picture is full of layers, and the details and outlines of the picture are clearly displayed on the screen. The outstanding performance makes the display in various environments more perfect and smooth.
Specification
|
Brightness
|
10,000 ANSI Lumens
|
|
Brightmess(Min)
|
8.000 ANSI Lumens
|
|
Display Panel
|
3*0.79“
|
|
Display Technology
|
Liquid Crystal Display
|
|
Native Resolution
|
WXGA(1920 x 1200)
|
|
Lamp Consumption(W)
|
Nomal: 480W
|
|
Lamp Lifetime(H)
|
Normal:5000Hrs/ECO:6000Hrs
|
|
Zoom/Focus
|
Powered
|
|
Throw Ratio
|
100"@2.986m
1.47（wide)--2.65（tele） |
|
F
|
F:1.8~2.6
|
|
f
|
f=24.0mm~43.2mm
|
|
Zoom Ratio
|
1.8x optics
|
|
Screen size
|
40-300 Wide(inch)
|
|
Lens Shift V
|
±60% (Powered)
|
|
Lens Shift H
|
±30%(Powered)
|
|
Contrast Ratio(Min)
|
2000:1 with IRIS @ lens center
|
|
Noise(dB)
|
Normal:40dB@2m
ECO:34dB@2m |
|
Uniformity(Actual Min)
-JISX6911 |
90%
|
|
Aspect Ratio
|
16:9(Compatible)/4:3 (Standard)
|
|

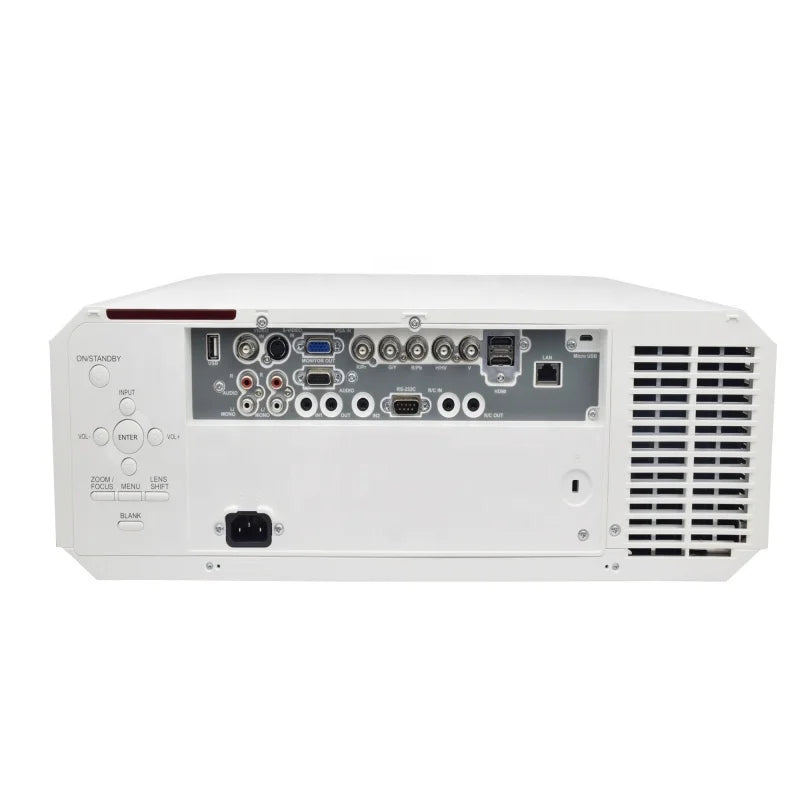

Input
|
VGA, Audio in, BNC, Video, RCA, S-Video, HDMiI, USB-A, Miro USB, RJ45
|
|
Output
|
VGA, Audio out
|
|
Control
|
RS232, RJ45, Micro USB, Wired Remote(IN/ OUT), HD-Base
|
|
Speaker
|
1*10W
|
|
Power Requeirements
|
100~240V@ 50/60Hz
|
|
Power Consumption
（Normal) |
590W MAX
|
|
Power Consumption
（ECO) |
370W
|
|
ECO Standby Mode
Power Consumption |
<0.5W
|
|
Network standby
Power Consumption |
<3W
|
|
Operating Temp.
|
0℃~40℃(35~ ECO)
|
|
Store Temp.
|
-20℃~~60℃
|
|
Oparating Humidity
|
20%~85%
|
|
Storage Humidity
|
10%~85%
|
Compatible Projector Lens

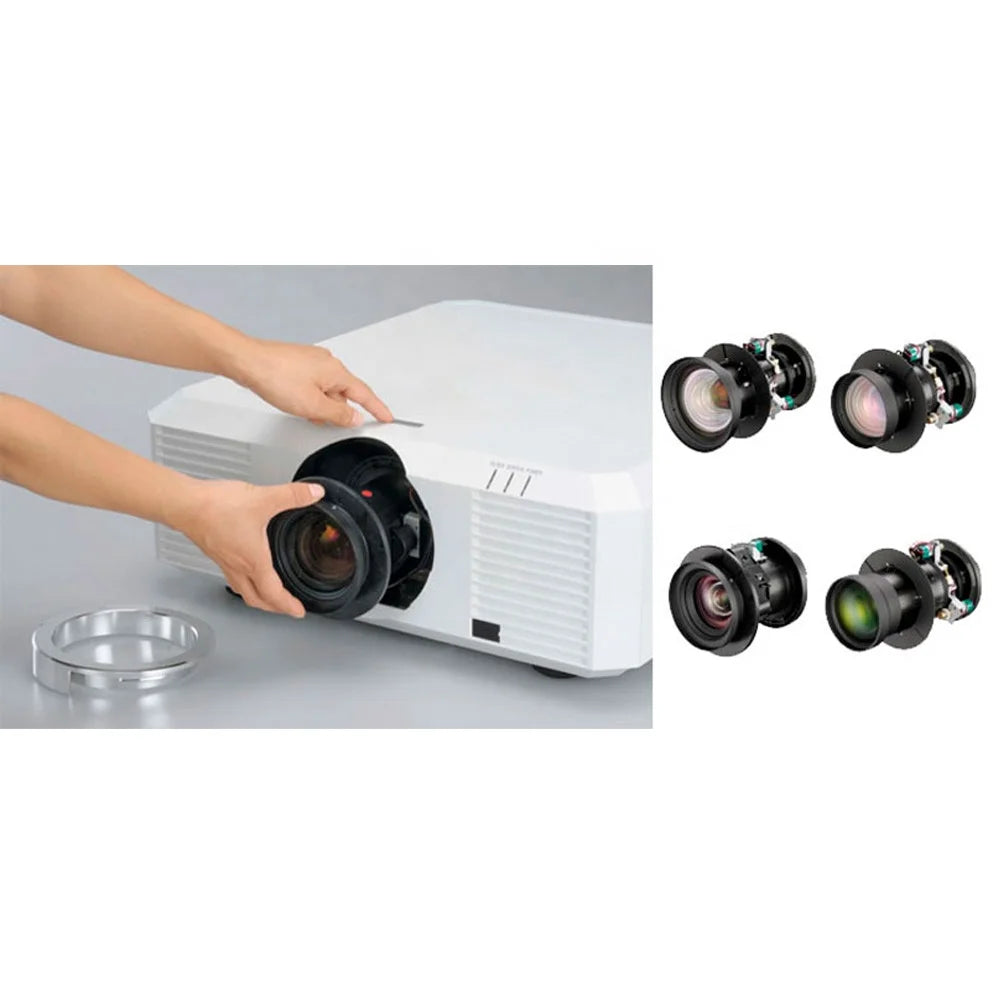

One Key Change the lens
The bayonet mount system uses a touch-sensitive lens removal method, so that the lens can be easily replaced after installation.
Simply unscrew and remove the anti-drop cover, press the release button, and then gently rotate the lens to easily remove it.
Similarly, just gently insert and rotate the lens, you can easily complete the lens installation.
Short Throw Lens OL-XL7100SZ
Simply unscrew and remove the anti-drop cover, press the release button, and then gently rotate the lens to easily remove it.
Similarly, just gently insert and rotate the lens, you can easily complete the lens installation.
Compatible Lens As Follows
Standard Lens OL-XL7100FRShort Throw Lens OL-XL7100SZ
Long Zoom Lens OL-XL7100LZ
Long Zoom Lens OL-XL7100TZ
Long Zoom Lens OL-XL7100TZ
