Product Name
|

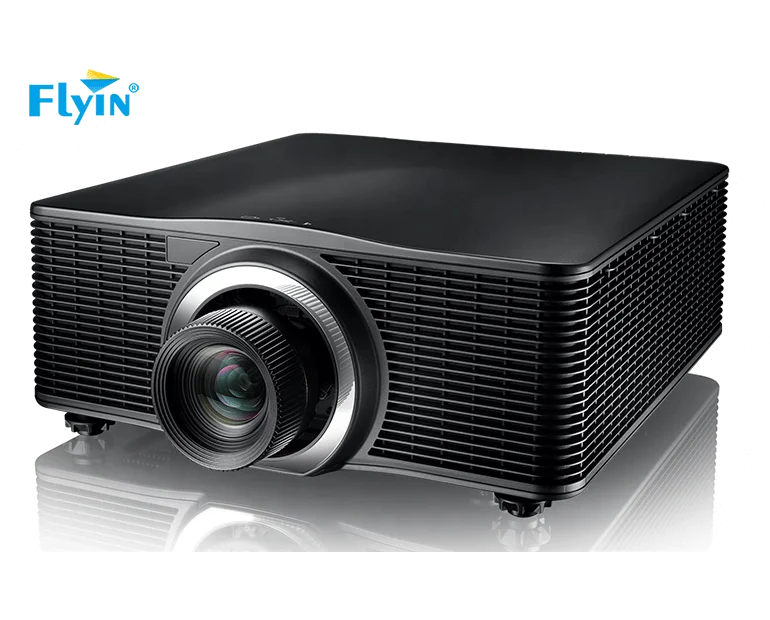

DLP 3D Display Projection
|
|
Model Number
|
PL-W15G
|
|
Display Technology
|
DLP
|
|
Native Resolution
|
WUXGA 1920 x 1200 Pixels
|
|
Brightness
|
15000 Lumens
|
|
Contrast
|
2,000,000:1
|
|
Light Source
|
Multi Color Laser
|
|
Light Source Life Bright
|
20,000 hours
|
|
Lens Options
|
AP-HLB03: 0.34:1
AP-HLB03R: 0.36:1
AP-HLB05: 0.57:1
AP-HLB07: 0.75-0.95:1
AP-HLB08: 0.74:1
AP-HLB09: 0.95-1.22:1
AP-HLB12A: 1.22-1.53:1(STD)
AP-HLB15: 1.52-2.92:1
AP-HLB29: 2.9-5.5:1
|
|
Throw Ratio
|
0.34-5.5:1
|
|
Zoom Type
|
Motorized
|
|
Lens Shift
|
Dependent on lens | powered
|
|
I/O Connectors
|
HDMI In*1;VGA In*1;DVI In*1;3G-SDI In*1;HDBaseT*1;
VGA Out*1;HDMI Out*1
3D SYNC In*1;3D SYNC Out*1;RS232*1;IR remote*1;
Wired remote*1;WIFI dongle *1;
Mini USB*1 ( for FW upgrade only);RJ45*1
|
|
Keystone Correction
|
±20° Vertical, ±20° Horizontal
|
|
Weight
|
23.4kg
|
|
Dimensions
|
484 x 509 x 185
|
|
Aspect Ratio
|
16:10 Native, 16:9 and 4:3 Compatible
|
|
Projection Screen Size
|
50-400 inches (diagonally )
|
|
Projection Distance
|
0.81 ~ 35.54m(lens independence)
|
|
Uniformity
|
90%
|
|
Computer Compatibility
|
WUXGA,HD, UXGA, WXGA, SXGA, XGA, SVGA, VGA Resized,VESA,
PC and Macintosh Compatible
|
|
Video Compatibility
|
PAL ( 625/576i/p) SECAM, NTSC ,HDTV
|
|
3D Support
|
Full 3D – The 3D features of Optoma projectors can only be used with compatible 3D content.
Typical applications include use with 3D educational or 3D design and modelling systems.
3D TV broadcast systems
Xbox 360 are now supported as part of the HDMI v1.4a specification.
|
|
3D compatibilty
|
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
|
Horizontal Scan Rate
|
15 – 91kHz
|
|
Vertical Scan Rate
|
24 – 85Hz (120Hz for 3D)
|
|
Displayable Colors
|
1073.4 million colors（10bits)
|
|
Noise Level
|
32db(eco mode)
|
|
Power Supply
|
100 240V, 50 60Hz, auto-switching
|
|
Power Consumption
|
945W +/- 15% AT 110V (Normal Mode) | 480W +/- 15% AT 110V (Eco Mode) |
910W +/- 15% AT 220V(NORMAL MODE) 470W +/- 15% AT220V(Eco Mode)
|
|
Lamp Type
|
Laser Phosphor
|
|
Operating Temperature
|
0 ~ 2500 ft, 5 ~ 40°C, 2500 ~ 5000 ft, 5 ~ 35°C, 5000 ~ 10000 ft, 5 ~ 30°C
|
|
Heat Dissipation
|
3224.5
|
|
On Screen Display
|
18 languages: English, German, French, Italian, Spanish, Portuguese, Polish,
Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech
|
|
Remote Control
|
Infra-red remote control, wired connection
|
|
360-operation
|
YES
|
|
Portrait Mode
|
YES
|
|
Conformance
|
CE, TUV-GS, CB
|
|
Security
|
4-digit PIN code, Kensington lock port, security bar
|
